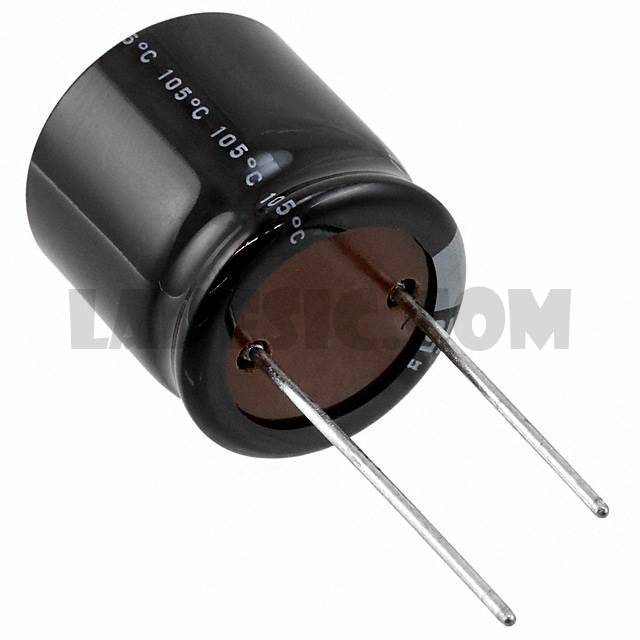

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	URZ Series
Standard Package	50
Manufacturer	Nichicon
Series	URZ
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	420mA @ 120Hz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.787" Dia (20.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

URZ1E332MHD1TN	Nichicon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2G470MHD1TN	Nichicon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1H0R1MDD1TD	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1J330MPD1TD	Nichicon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ0J101MDD	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1E472MHD1TN	Nichicon, 4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1E4R7MDD	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2C470MHD1TN	Nichicon, 47µF 160V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1V102MHD1TN	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1V4R7MDD1TD	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ2E470MRD6	Nichicon, 47µF 250V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View
URZ1V222MHD1TN	Nichicon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, URZ	View

URZ2D101MRD6

Part NumberURZ2D101MRD6
