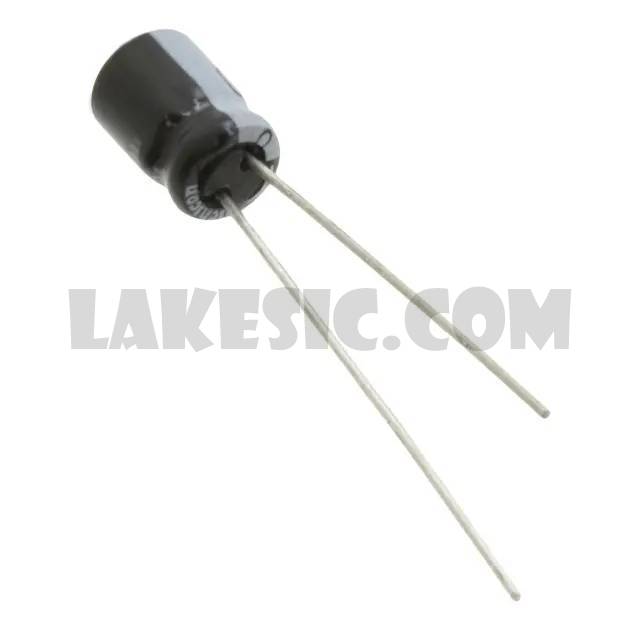

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	USA, USR Series
Standard Package	2000
Manufacturer	Nichicon
Series	USA
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	28mA @ 120Hz
Ripple Current @ High Frequency	42mA @ 10kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

USA1C470MDD1TP	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA1H010MDD1TE	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA0J470MDD	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA1V100MDD1TP	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA1C220MDD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA1H2R2MDD1TP	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA1E100MDD	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA1H4R7MDD1TP	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA1HR47MDD1TE	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA1V330MDD	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA1E330MDD1TP	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View
USA1H2R2MDD1TE	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USA	View

USA1C100MDD1TE

Part NumberUSA1C100MDD1TE
