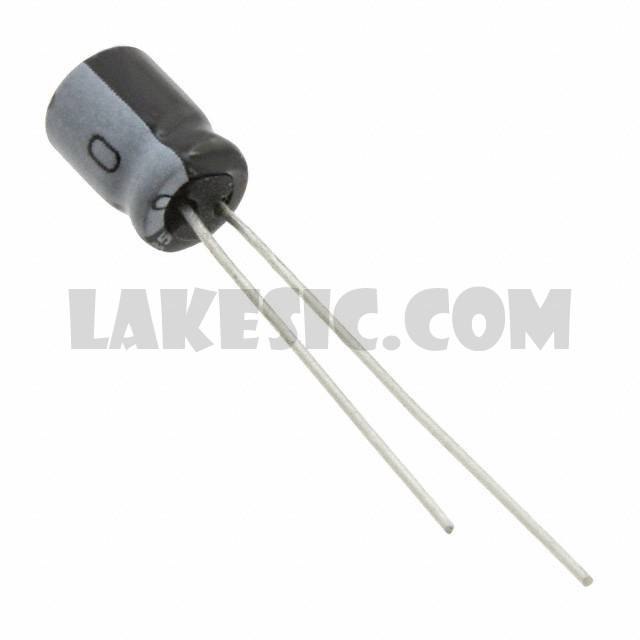

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	USA, USR Series
Standard Package	1
Manufacturer	Nichicon
Series	USR
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	78mA @ 120Hz
Ripple Current @ High Frequency	117mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

USR1E101MDD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1C330MDD	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1E101MDD1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1E100MDD1TE	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1H2R2MDD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1V330MDD	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1C220MDD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR0J331MDD	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1A221MDD1TD	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1E100MDD1TE	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1H010MDD1TP	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View
USR1V220MDD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, USR	View

USR0J101MDD1TP

Part NumberUSR0J101MDD1TP
