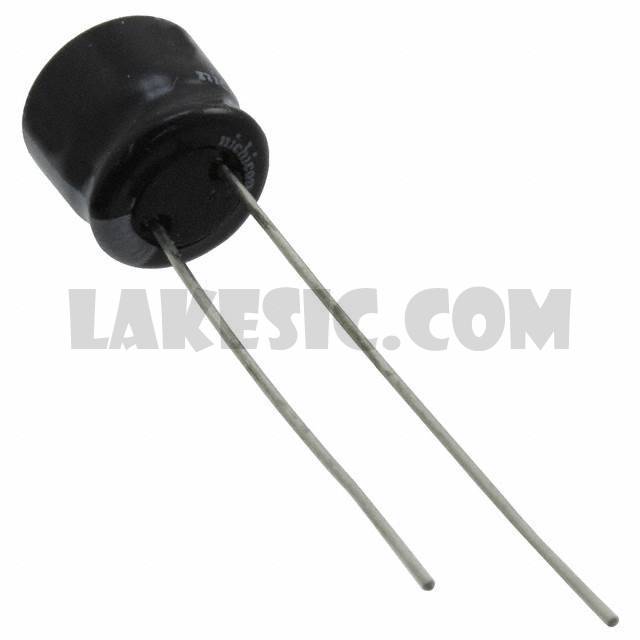

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UST Series
Standard Package	1
Manufacturer	Nichicon
Series	UST
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	107mA @ 120Hz
Ripple Current @ High Frequency	160.5mA @ 10kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UST0J101MDD	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H100MDD1TP	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1A220MDD1TE	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1E100MDD1TE	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H100MDD1TE	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H100MDD1TE	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H100MDD1TP	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1E100MDD	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H010MDD1TE	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1V100MDD1TP	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1H010MDD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View
UST1V4R7MDD	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UST	View

UST1C101MDD1TA

Part NumberUST1C101MDD1TA
