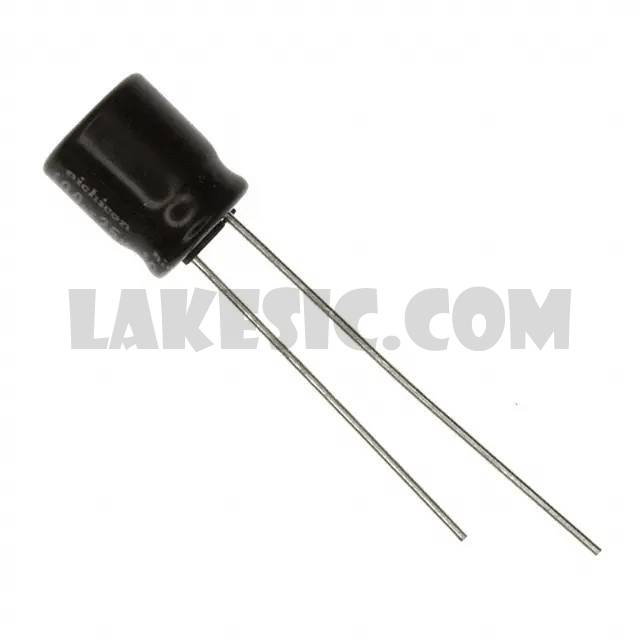

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UTT Series
Standard Package	1000
Manufacturer	Nichicon
Series	UTT
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	138mA @ 120Hz
Ripple Current @ High Frequency	230mA @ 100kHz
Impedance	680 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UTT1A330MDD1TP	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1V4R7MDD1TP	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1C470MDD1TP	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1H220MDD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1A151MDD1TD	Nichicon, 150µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1H010MDD1TP	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1C151MPD	Nichicon, 150µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1A330MDD1TP	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT0J470MDD1TP	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1E330MDD1TP	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1V330MDD1TD	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View
UTT1C220MDD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UTT	View

UTT1E101MPD1TD

Part NumberUTT1E101MPD1TD
