Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUA Series
Standard Package	1
Manufacturer	Nichicon
Series	UUA
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	18mA @ 120Hz
Ripple Current @ High Frequency	27mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UUA1C221MNL1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1E221MNL1GS	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1A220MCL1GS	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1H220MCL1GS	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA0J471MNL1GS	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1C101MCL1GS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1A470MCL1GS	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1H101MNL1GS	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1C471MNL1GS	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View
UUA1H010MCL1GS	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA0J101MCL1GS	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUA	View
UUA1H470MNL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUA	View

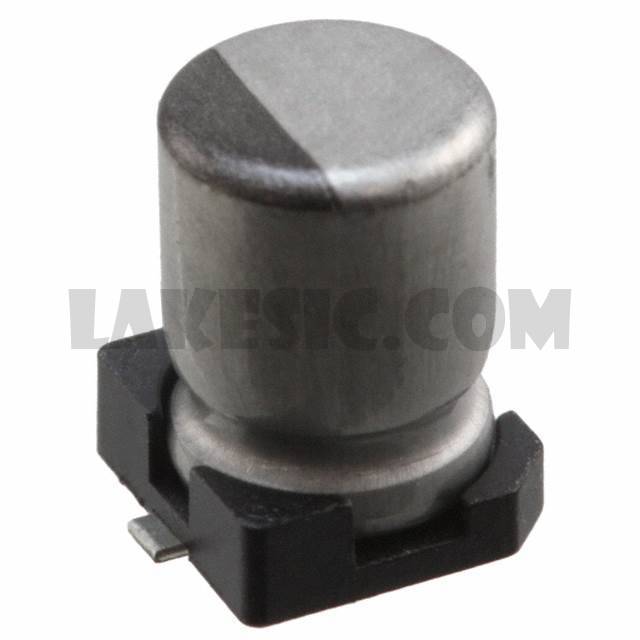

UUA1C100MCL1GS

Part NumberUUA1C100MCL1GS
