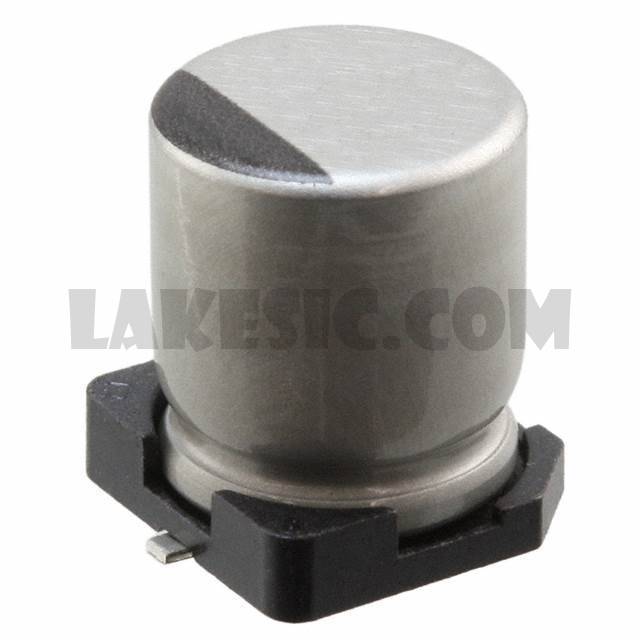

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUA Series
Standard Package	900
Manufacturer	Nichicon
Series	UUA
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	63mA @ 120Hz
Ripple Current @ High Frequency	94.5mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
