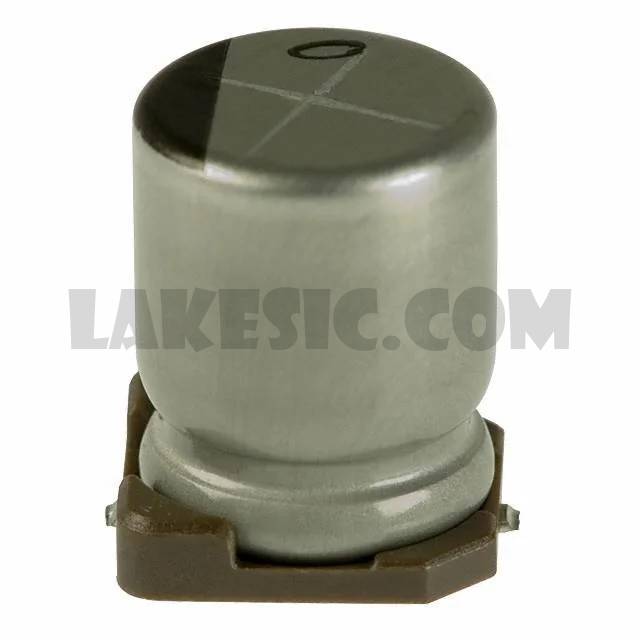

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUD Series
Standard Package	500
Manufacturer	Nichicon
Series	UUD
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	225mA @ 120Hz
Ripple Current @ High Frequency	450mA @ 100kHz
Impedance	170 mOhms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
