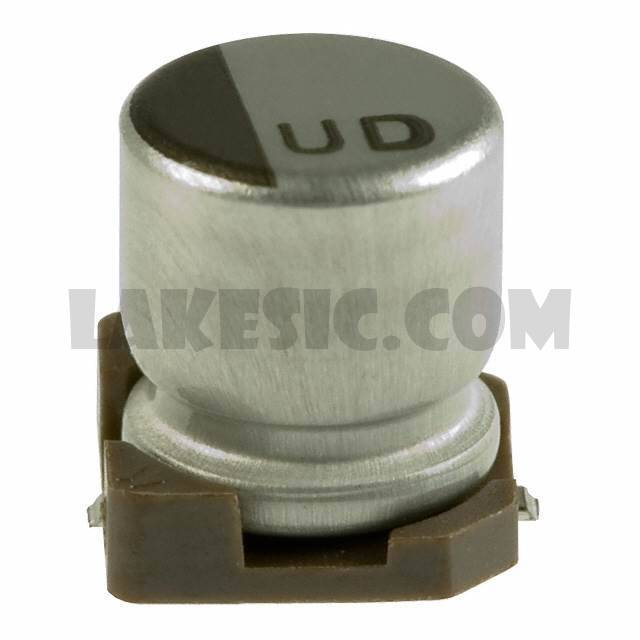

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUD Series
Standard Package	1000
Manufacturer	Nichicon
Series	UUD
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	42.5mA @ 120Hz
Impedance	1.52 Ohms
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
