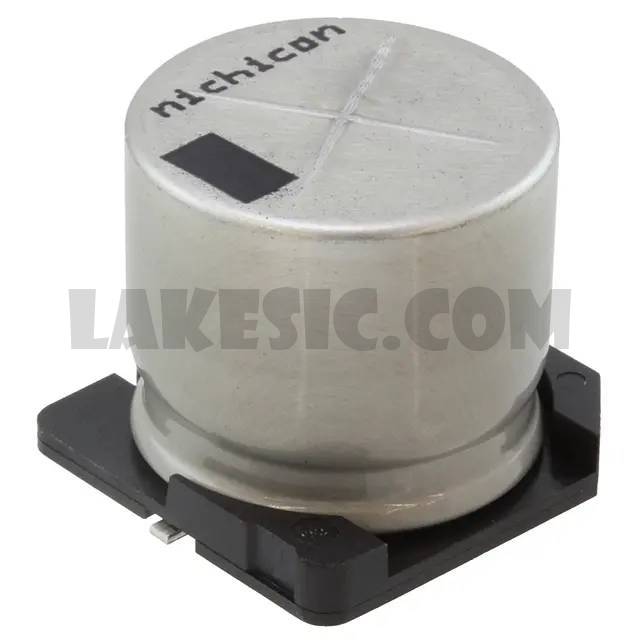

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUJ Series
Standard Package	1
Manufacturer	Nichicon
Series	UUJ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	50mA @ 120Hz
Ripple Current @ High Frequency	80mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UUJ2A221MNQ1MS	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ2E100MNQ1ZD	Nichicon, 10µF 250V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ2E470MNQ1ZD	Nichicon, 47µF 250V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ1V471MNQ6MS	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ2C101MNQ1MS	Nichicon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ2A101MNQ6MS	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ1J221MNQ1MS	Nichicon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ2A680MNQ1MS	Nichicon, 68µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ2D680MNQ1MS	Nichicon, 68µF 200V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ1J471MNQ1MS	Nichicon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ2A221MNQ1MS	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View
UUJ2A470MNQ1ZD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUJ	View

UUJ2W4R7MNQ1MS

Part NumberUUJ2W4R7MNQ1MS
