Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUL Series
Standard Package	1000
Manufacturer	Nichicon
Series	UUL
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	30mA @ 120Hz
Ripple Current @ High Frequency	45mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UUL1A471MNL1GS	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL1C101MCL1GS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL1A220MCL1GS	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL0J102MNL1GS	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL1E101MNL1GS	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL1C100MCL1GS	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL1V330MCL1GS	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL1C330MCL1GS	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL1C471MNL1GS	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL1H470MNL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL0J330MCL1GS	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View
UUL1A221MNL1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UUL	View

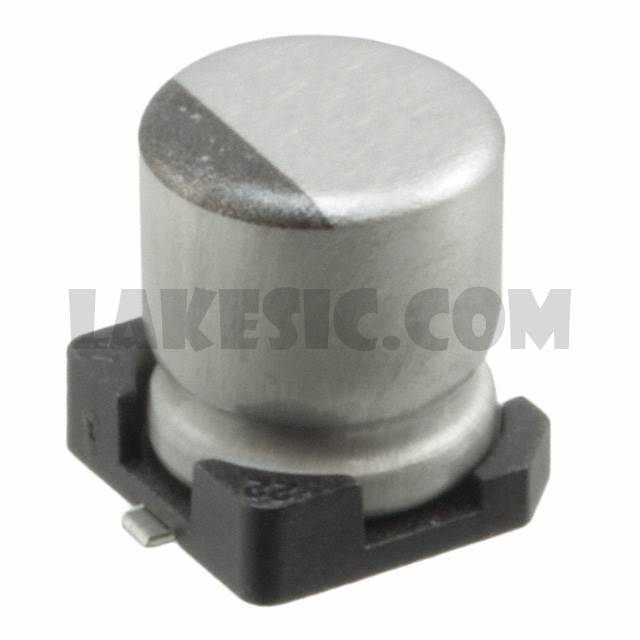

UUL1C220MCL1GS

Part NumberUUL1C220MCL1GS
