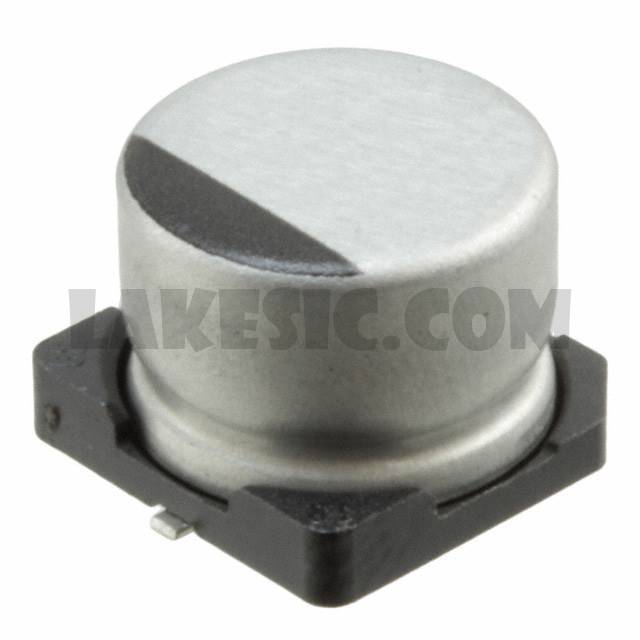

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUX Series
Standard Package	1
Manufacturer	Nichicon
Series	UUX
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	90mA @ 120Hz
Ripple Current @ High Frequency	117mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.256" (6.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UUX2D3R3MNL1GS	Nichicon, 3.3µF 200V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1H470MNL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2E3R3MNL1GS	Nichicon, 3.3µF 250V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX2A220MNL6GS	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2G010MNL1GS	Nichicon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX2G3R3MNL1GS	Nichicon, 3.3µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1H330MNL1GS	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX1A101MCL1GS	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2G3R9MNL1GS	Nichicon, 3.9µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1J100MCL1GS	Nichicon, 10µF 63V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2D100MNL1GS	Nichicon, 10µF 200V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1C471MNL1GS	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View

UUX1A101MCL1GS

Part NumberUUX1A101MCL1GS
