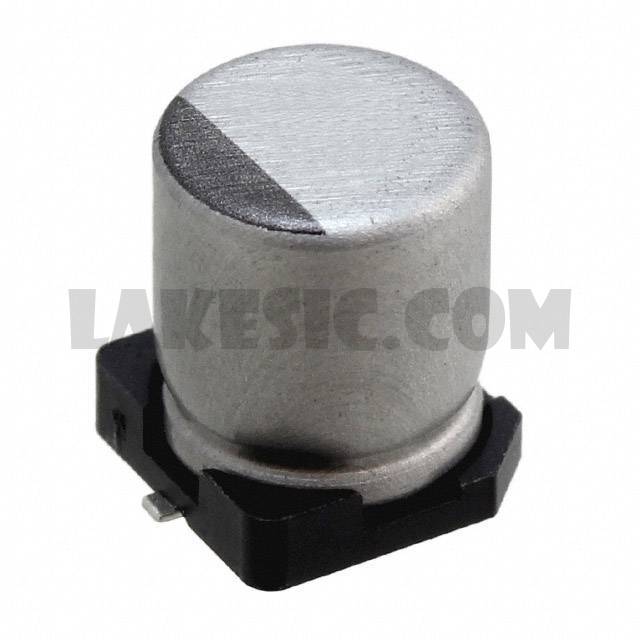

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUX Series
Standard Package	900
Manufacturer	Nichicon
Series	UUX
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	111mA @ 120Hz
Ripple Current @ High Frequency	144.3mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UUX2E3R9MNL1GS	Nichicon, 3.9µF 250V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX2A4R7MCL1GS	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2G3R3MNL1GS	Nichicon, 3.3µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1E331MNL1GS	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX1C101MNL1GS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2E6R8MNL1GS	Nichicon, 6.8µF 250V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX2G1R8MNL1GS	Nichicon, 1.8µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX0J221MNL1GS	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2C180MNL1GS	Nichicon, 18µF 160V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX0J102MNL1GS	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2A4R7MCL1GS	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX1V470MNL1GS	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View

UUX1C101MCL6GS

Part NumberUUX1C101MCL6GS
