Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUX Series
Standard Package	500
Manufacturer	Nichicon
Series	UUX
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	230mA @ 120Hz
Ripple Current @ High Frequency	384.1mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount

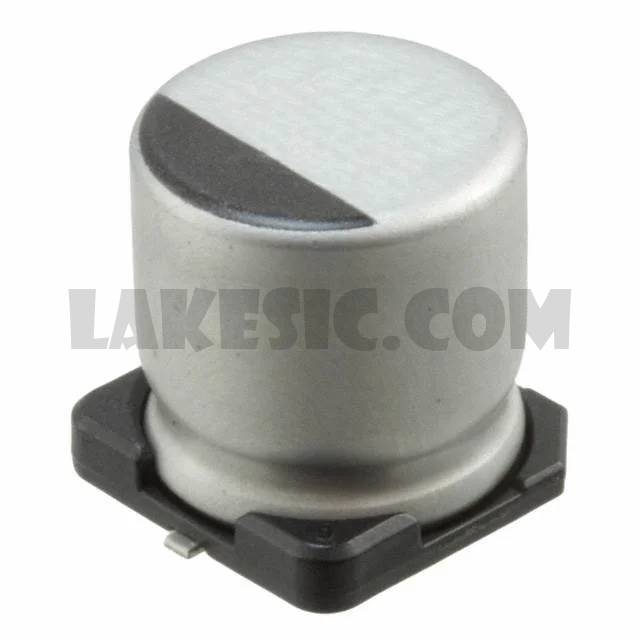

Package / Case	Radial, Can - SMD

UUX0J471MNL6GS	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2G3R9MNL1GS	Nichicon, 3.9µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1C101MNL1GS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2C100MNL1GS	Nichicon, 10µF 160V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1A681MNL1GS	Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2G010MNL1GS	Nichicon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX2G1R8MNL1GS	Nichicon, 1.8µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX2G4R7MNL1GS	Nichicon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1C101MCL6GS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX1H330MNL1GS	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View
UUX2G010MNL1GS	Nichicon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C, UUX	View
UUX1A471MNL6GS	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UUX	View

UUX2A470MNL1GS

Part NumberUUX2A470MNL1GS
