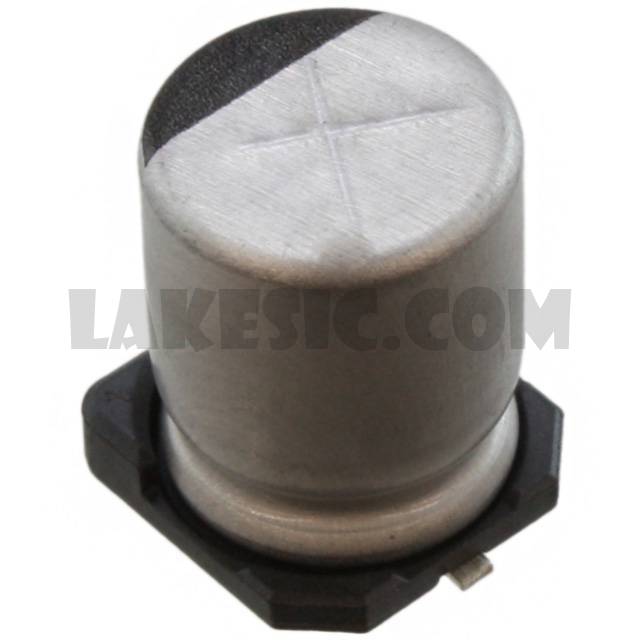

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUX Series
Standard Package	500
Manufacturer	Nichicon
Series	UUX
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1.8µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	26mA @ 120Hz
Ripple Current @ High Frequency	43.42mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
