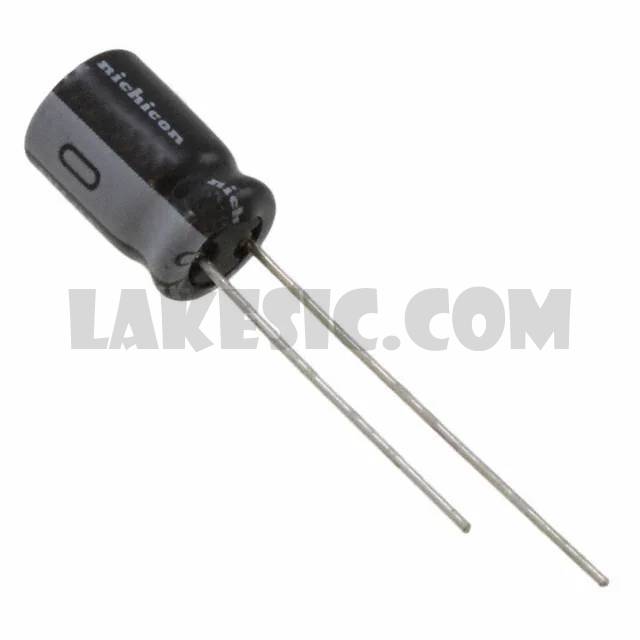

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVK Series
Standard Package	200
Manufacturer	Nichicon
Series	UVK
Packaging	Bulk
Part Status	Active
Capacitance	3.3µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	48mA @ 120Hz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVK1H330MDD1TD	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1V102MHD1TO	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1J472MRD	Nichicon, 4700µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK1E332MHD1TN	Nichicon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A222MRD	Nichicon, 2200µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A100MDD1TD	Nichicon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2AR33MDD1TD	Nichicon, 0.33µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A220MED1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V470MHD	Nichicon, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A010MDD1TD	Nichicon, 1µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2A471MHD1TN	Nichicon, 470µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View
UVK2V4R7MPD1TD	Nichicon, 4.7µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVK	View

UVK2G3R3MPD

Part NumberUVK2G3R3MPD
