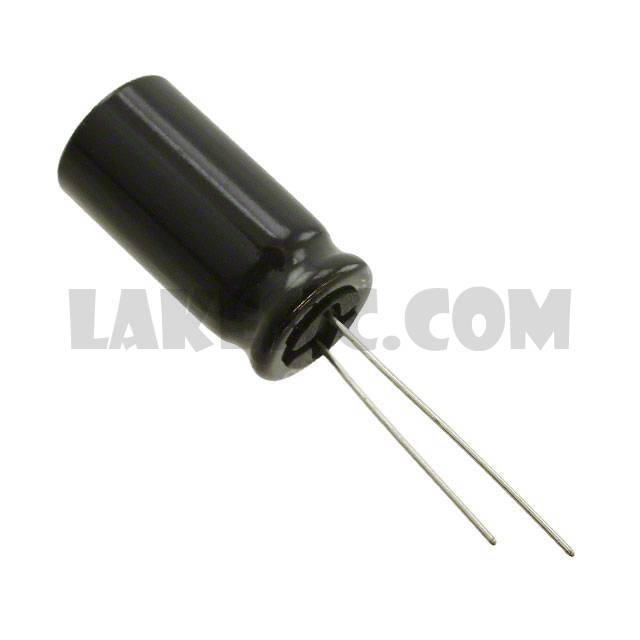

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVP Series
Standard Package	1
Manufacturer	Nichicon
Series	UVP
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.16A @ 120Hz
Ripple Current @ High Frequency	1.334A @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
