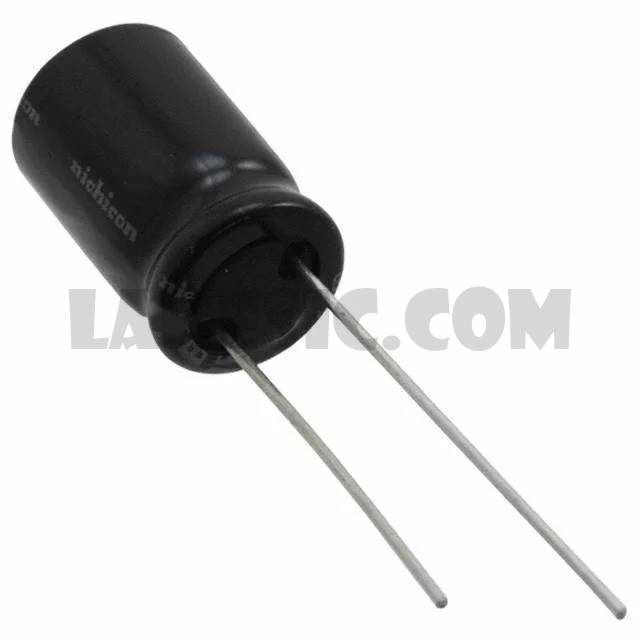

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVP Series
Standard Package	1
Manufacturer	Nichicon
Series	UVP
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	410mA @ 120Hz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVP1A470MDD1TD	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1J3R3MDD1TD	Nichicon, 3.3µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP2A4R7MED1TD	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1C100MDD1TD	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP2A3R3MED1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP0J470MDD1TD	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1A222MHD	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP0J101MED	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1A101MED1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1J3R3MDD	Nichicon, 3.3µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP2A220MPD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1V101MPD1TD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View

UVP1A471MPD1TD

Part NumberUVP1A471MPD1TD
