Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVP Series
Standard Package	200
Manufacturer	Nichicon
Series	UVP
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	17mA @ 120Hz
Ripple Current @ High Frequency	34mA @ 10kHz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVP1H100MED	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP2A101MHD1TN	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1A221MPD1TD	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1J4R7MED1TD	Nichicon, 4.7µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1H330MPD	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1H331MHD1TN	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1J101MHD1TO	Nichicon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1H221MHD1TO	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP0J101MED1TD	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1V4R7MDD1TD	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1V220MED	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1A330MDD1TD	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View

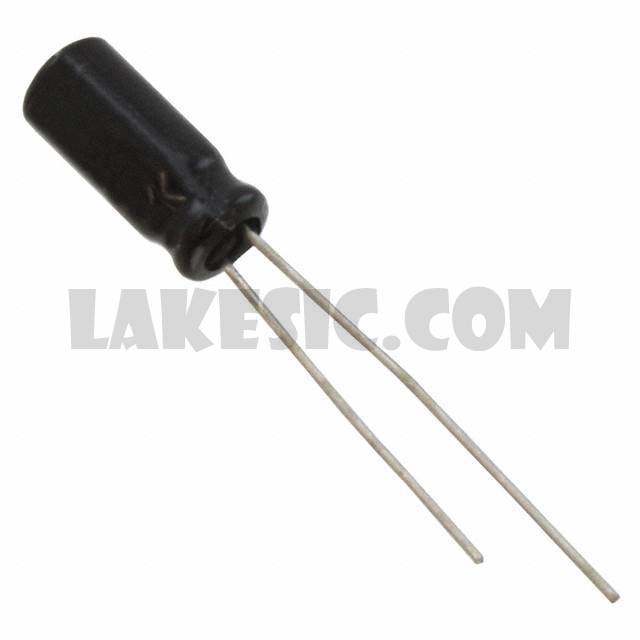

UVP1H010MDD

Part NumberUVP1H010MDD
