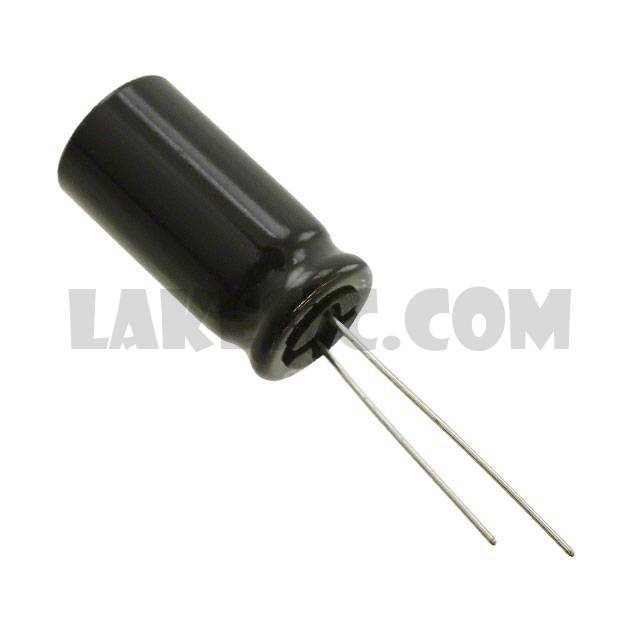

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVP Series
Standard Package	100
Manufacturer	Nichicon
Series	UVP
Packaging	Bulk
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	480mA @ 120Hz
Ripple Current @ High Frequency	720mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVP1A472MHD	Nichicon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1A221MPD1TD	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1H100MED1TD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1H010MDD1TD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1V220MED1TD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1HR47MDD	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP2A101MHD1TN	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1H2R2MDD1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1A102MHD1TO	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP2A101MHD	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP1V471MHD1TO	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View
UVP2A330MHD1TO	Nichicon, 33µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVP	View

UVP1H221MHD

Part NumberUVP1H221MHD
