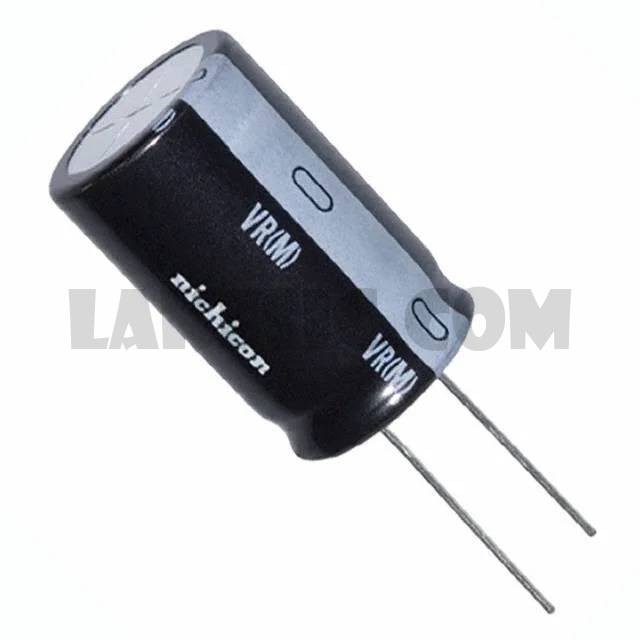

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVR Series
Standard Package	180
Manufacturer	Nichicon
Series	UVR
Packaging	Bulk
Part Status	Active
Capacitance	4700µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	3.2A @ 120Hz
Ripple Current @ High Frequency	3.68A @ 10kHz
Lead Spacing	0.492" (12.50mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVR1H4R7MDD6TP	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2W220MHD1TN	Nichicon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1H220MDD1TD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1C220MDD1TA	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1H0R1MDD6TP	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2AR33MDD1TD	Nichicon, 0.33µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2V4R7MPD1TD	Nichicon, 4.7µF 350V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1A222MPD	Nichicon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1E4R7MDD6TP	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1H103MRD	Nichicon, 10000µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1HR33MDD1TD	Nichicon, 0.33µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR0J101MDD1TD	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View

UVR1J472MRD6

Part NumberUVR1J472MRD6
