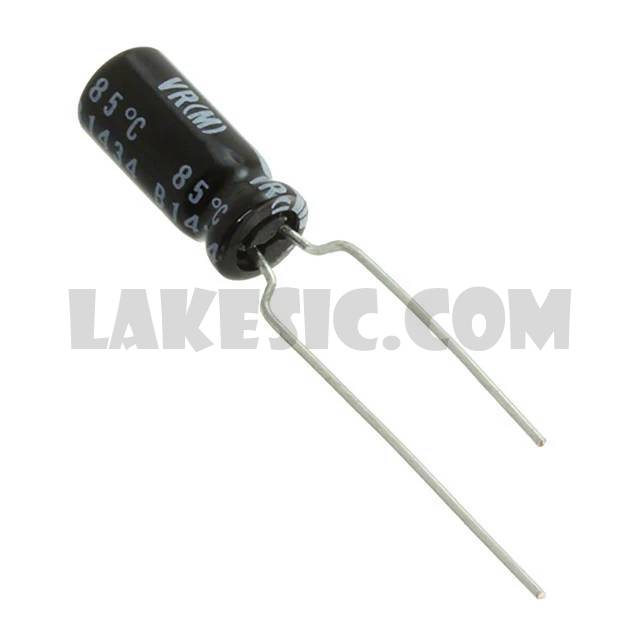

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVR Series
Standard Package	1
Manufacturer	Nichicon
Series	UVR
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	130mA @ 120Hz
Ripple Current @ High Frequency	260mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVR1HR47MDD6TP	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1V330MDD1TA	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2C100MPD1TD	Nichicon, 10µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1H221MPD1TD	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1E4R7MDD6TP	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1A331MED1TD	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1V100MDD6TP	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2E3R3MPD	Nichicon, 3.3µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2C101MHD1TO	Nichicon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1E222MHD1TO	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR1J100MDD1TA	Nichicon, 10µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View
UVR2E4R7MPD1TD	Nichicon, 4.7µF 250V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UVR	View

UVR1V470MDD1TA

Part NumberUVR1V470MDD1TA
