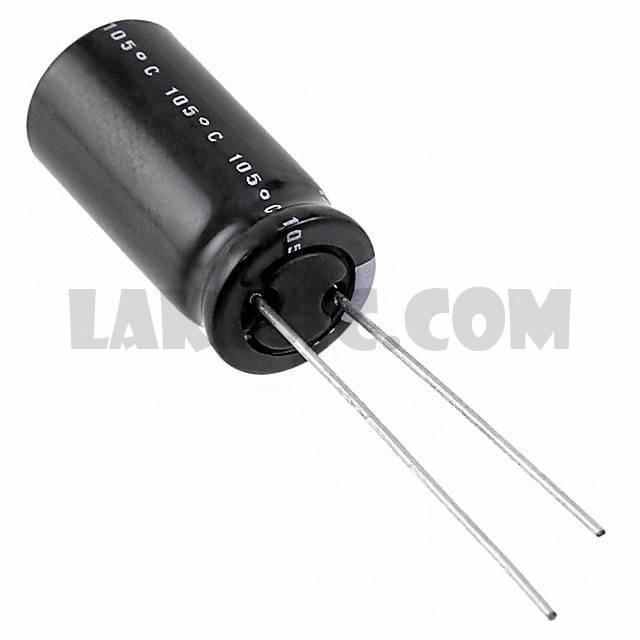

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVY Series
Standard Package	200
Manufacturer	Nichicon
Series	UVY
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	710mA @ 120Hz
Ripple Current @ High Frequency	816.5mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.787" (20.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVY2AR22MDD1TD	Nichicon, 0.22µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1V331MPD1TD	Nichicon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1H3R3MDD1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2E4R7MED1TD	Nichicon, 4.7µF 250V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2A470MPD1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1V102MHD1TO	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1H221MPD1TD	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2A220MED1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2W221MRD	Nichicon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1E221MED1TA	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1A682MHD1TN	Nichicon, 6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2GR47MED1TD	Nichicon, 0.47µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View

UVY1C222MPD

Part NumberUVY1C222MPD
