Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVY Series
Standard Package	50
Manufacturer	Nichicon
Series	UVY
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	715mA @ 120Hz
Ripple Current @ High Frequency	1.0725A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVY2A4R7MDD1TD	Nichicon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1E331MPD1TD	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY0J222MPD1TD	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2G2R2MPD	Nichicon, 2.2µF 400V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2A222MRD	Nichicon, 2200µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1C222MPD1TD	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2V470MHD1TN	Nichicon, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY1J680MPD1TD	Nichicon, 68µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2A0R1MDD1TD	Nichicon, 0.1µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2DR33MED1TD	Nichicon, 0.33µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2V220MHD1TO	Nichicon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View
UVY2A220MED1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVY	View

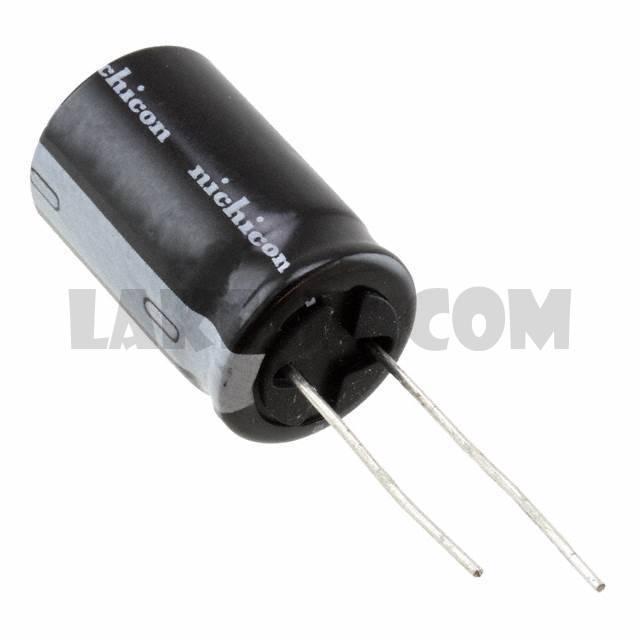

UVY2A471MHD

Part NumberUVY2A471MHD
