Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UVZ Series
Standard Package	2000
Manufacturer	Nichicon
Series	UVZ
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	115mA @ 120Hz
Ripple Current @ High Frequency	230mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UVZ1C223MRD	Nichicon, 22000µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1E332MHD1TN	Nichicon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1H470MED1TA	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1E221MPD1TD	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1E100MDD1TA	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ2W010MPD1TD	Nichicon, 1µF 450V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ2A220MED1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1A101MDD1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ1E470MDD1TD	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ2C101MHD1TO	Nichicon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ2F330MHD1TN	Nichicon, 33µF 315V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View
UVZ2F3R3MPD1TD	Nichicon, 3.3µF 315V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UVZ	View

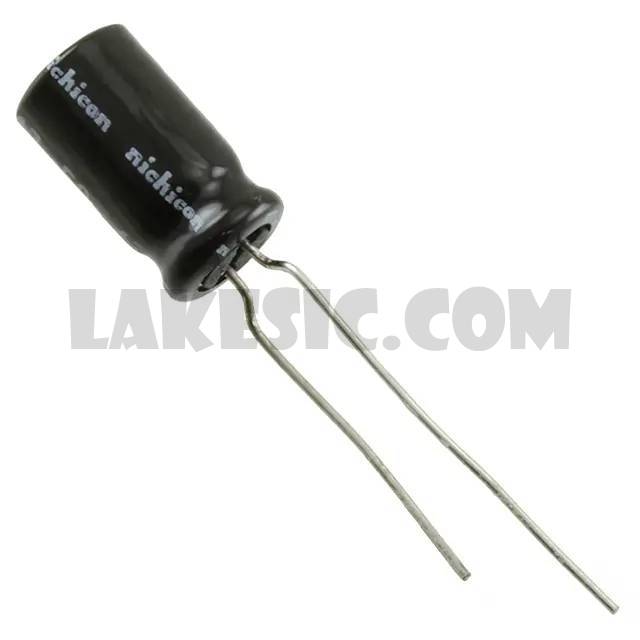

UVZ1H470MED1TA
