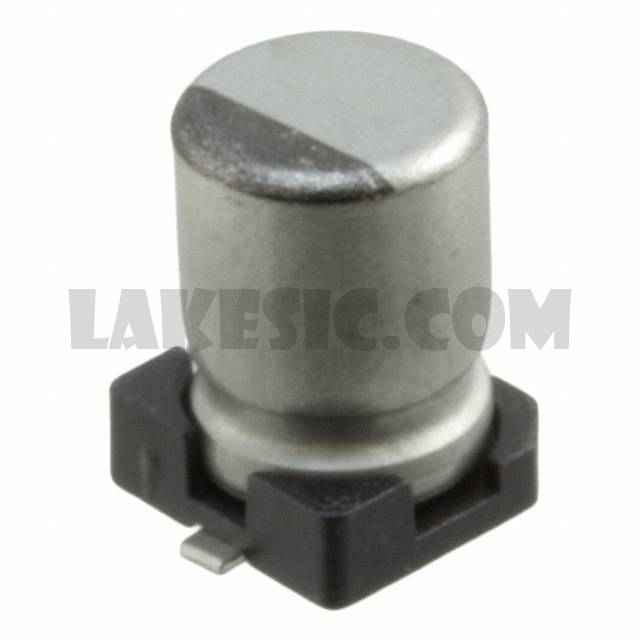

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWD Series
Standard Package	1
Manufacturer	Nichicon
Series	UWD
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	40mA @ 120Hz
Ripple Current @ High Frequency	80mA @ 100kHz
Impedance	1.8 Ohms
Lead Spacing	-
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWD1E331MCL1GS	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1A102MCL1GS	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD0J102MCL1GS	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1H221MCL1GS	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1H3R3MCL1GS	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A680MCL1GS	Nichicon, 68µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1E220MCL1GS	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD0J560MCL1GS	Nichicon, 56µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1H221MCL1GS	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1V220MCL1GS	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A470MCL1GS	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1V220MCL1GS	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View

UWD1E100MCL1GS

Part NumberUWD1E100MCL1GS
