Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWD Series
Standard Package	1000
Manufacturer	Nichicon
Series	UWD
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	115mA @ 120Hz
Ripple Current @ High Frequency	230mA @ 100kHz
Impedance	440 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWD1A330MCL1GS	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1C221MCL1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A101MCL1GS	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1H100MCL1GS	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A221MCL1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1H3R3MCL1GS	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1E560MCL1GS	Nichicon, 56µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD0J152MCL1GS	Nichicon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1E220MCL1GS	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD0J151MCL1GS	Nichicon, 150µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A270MCL1GS	Nichicon, 27µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1H221MCL1GS	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View

UWD1E560MCL1GS

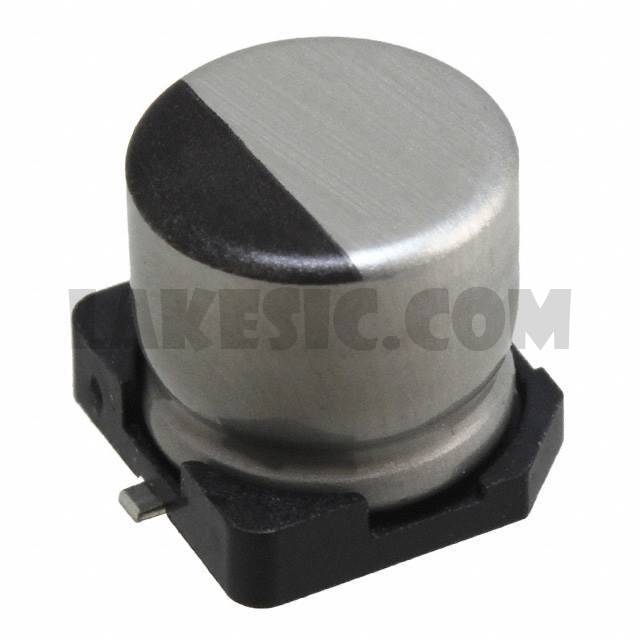

Part NumberUWD1E560MCL1GS
