Categories	Capacitors / Aluminum Electrolytic Capacitors

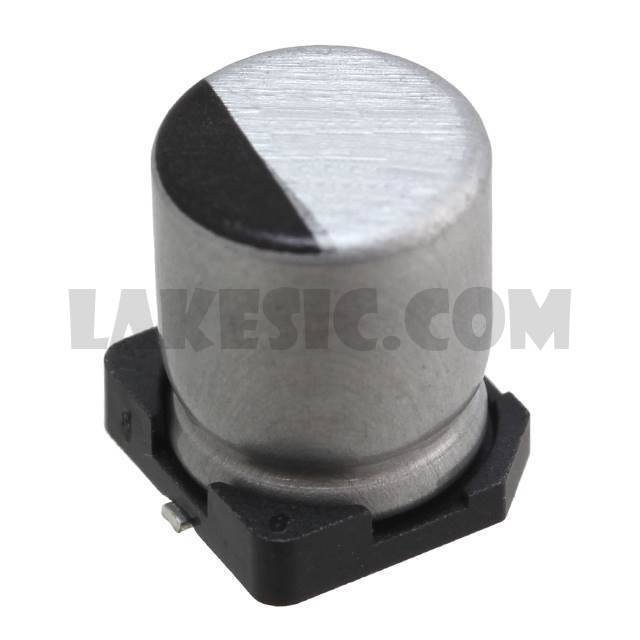

Datasheet	UWD Series
Standard Package	1
Manufacturer	Nichicon
Series	UWD
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	92.5mA @ 120Hz
Ripple Current @ High Frequency	185mA @ 100kHz
Impedance	680 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWD1E150MCL1GS	Nichicon, 15µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1C680MCL1GS	Nichicon, 68µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1V220MCL1GS	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A681MCL1GS	Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1H2R2MCL1GS	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1H150MCL1GS	Nichicon, 15µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1C220MCL1GS	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A330MCL1GS	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1E471MCL1GS	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View
UWD1E220MCL1GS	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1E680MCL1GS	Nichicon, 68µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UWD	View
UWD1A681MCL1GS	Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UWD	View

UWD1H470MCL1GS

Part NumberUWD1H470MCL1GS
