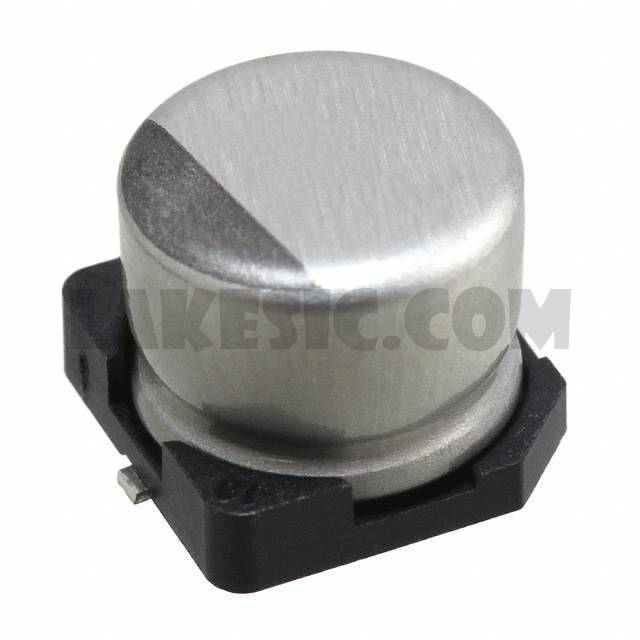

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWG Series
Standard Package	1
Manufacturer	Nichicon
Series	UWG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	70mA @ 120Hz
Ripple Current @ High Frequency	140mA @ 100kHz
Impedance	1 Ohms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWG1C471MNL1GS	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1H221MNL1GS	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1E6R8MCL1GB	Nichicon, 6.8µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1E680MNL1GS	Nichicon, 68µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1H2R2MCL1GB	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1V221MNL1GS	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1V3R3MCL1GB	Nichicon, 3.3µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1A221MNL1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1E471MNL1GS	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1A471MNL1GS	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1E331MNL1GS	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View
UWG1E470MCL1GS	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWG	View

UWG1E220MCL1GB

Part NumberUWG1E220MCL1GB
