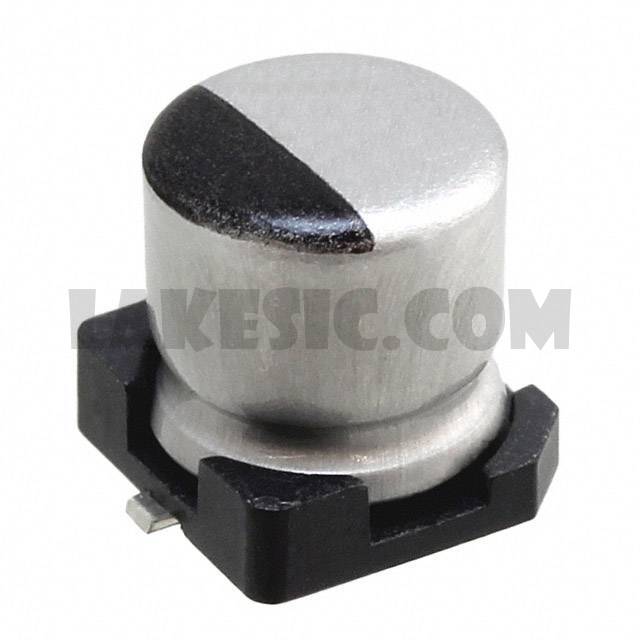

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWJ Series
Standard Package	1
Manufacturer	Nichicon
Series	UWJ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	37mA @ 120Hz
Ripple Current @ High Frequency	55.5mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.217" (5.50mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWJ1C101MCL1GB	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ0J470MCL1GB	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ1C330MCL1GB	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ1H4R7MCL1GB	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ1C220MCL1GB	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ1E220MCL1GB	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ1A330MCL1GB	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ1A470MCL1GB	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ1C330MCL1GB	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ1A330MCL1GB	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ1H100MCL1GB	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View
UWJ0J220MCL1GB	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C, UWJ	View

UWJ1C220MCL1GB

Part NumberUWJ1C220MCL1GB
