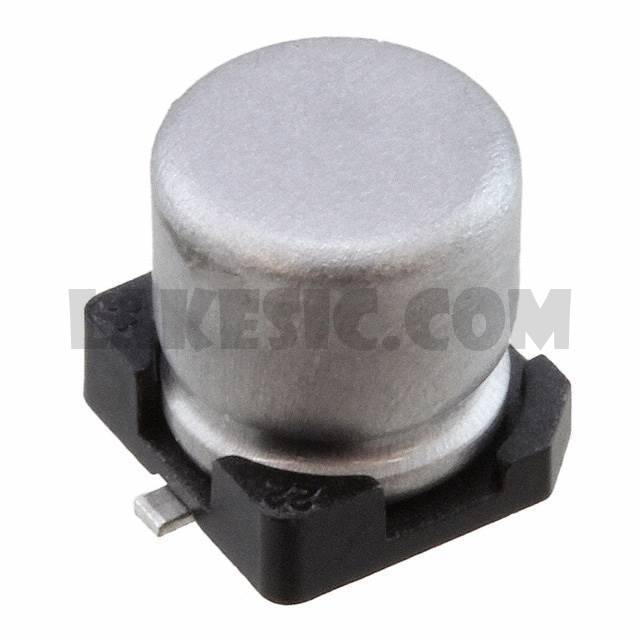

UWP1E4R7MCL1GB


UWP1E4R7MCL1GB

Part NumberUWP1E4R7MCL1GB

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UWP1E4R7MCL1GB - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package1
ManufacturerNichicon
SeriesUWP
PackagingCut Tape (CT)
Part StatusActive
Capacitance4.7µF
Tolerance±20%
Voltage - Rated25V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.1000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationBi-Polar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency16mA @ 120Hz
Ripple Current @ High Frequency24mA @ 10kHz
Lead Spacing-
Size / Dimension0.197" Dia (5.00mm)
Height - Seated (Max)0.217" (5.50mm)
Surface Mount Land Size0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
