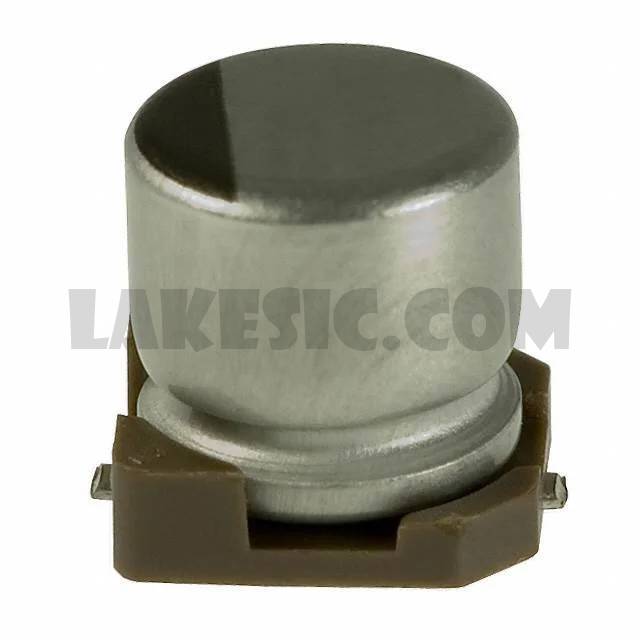

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWT Series
Standard Package	1
Manufacturer	Nichicon
Series	UWT
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	23mA @ 120Hz
Ripple Current @ High Frequency	34.5mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWT1E221MNL1GS	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0G470MCL1GB	Nichicon, 47µF 4V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1V4R7MCL1GB	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0G102MNL1GS	Nichicon, 1000µF 4V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1E220MCL1GB	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1A101MCL1GB	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0J331MCL1GS	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0J221MCL6GS	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1E470MCL1GB	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1C470MCL1GB	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0J471MNL1GS	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0J470MCL1GB	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View

UWT1E100MCL1GB

Part NumberUWT1E100MCL1GB
