Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWT Series
Standard Package	1
Manufacturer	Nichicon
Series	UWT
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	59mA @ 120Hz
Ripple Current @ High Frequency	88.5mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

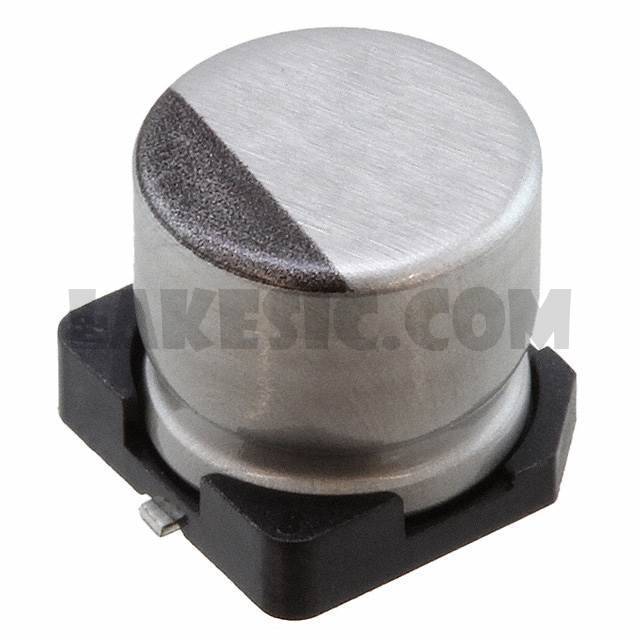

UWT1E470MCL6GS	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1H101MNL1GS	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1H221MNL1GS	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0J221MCL1GB	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1H470MCL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1A101MCL1GB	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1A470MCL1GB	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1H010MCL2GB	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0J152MNL1GS	Nichicon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1E221MNL1GS	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT1V4R7MCL1GB	Nichicon, 4.7µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View
UWT0J331MCL1GS	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWT	View

UWT1E470MCL6GS

Part NumberUWT1E470MCL6GS
