Home/Product Catalog/Capacitors / Aluminum Electrolytic Capacitors/  UWX1E101MCL1GB

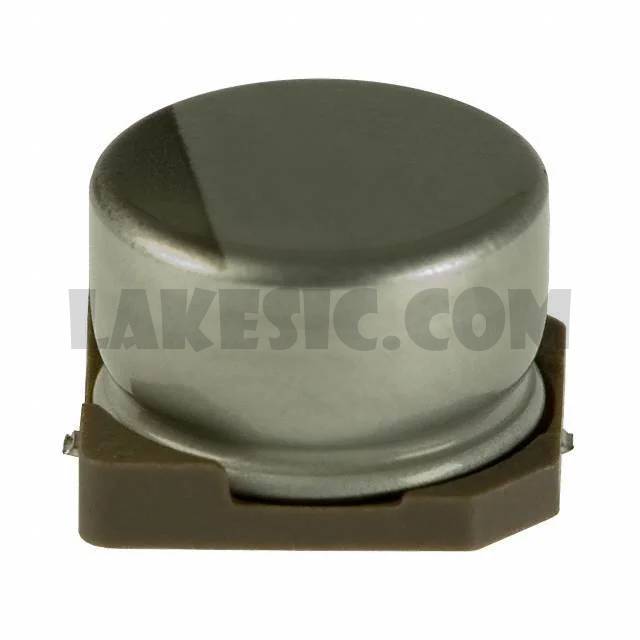

UWX1E101MCL1GB


UWX1E101MCL1GB

Part NumberUWX1E101MCL1GB

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UWX1E101MCL1GB - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package1
ManufacturerNichicon
SeriesUWX
PackagingCut Tape (CT)
Part StatusActive
Capacitance100µF
Tolerance±20%
Voltage - Rated25V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency110mA @ 120Hz
Ripple Current @ High Frequency165mA @ 10kHz
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.213" (5.40mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
