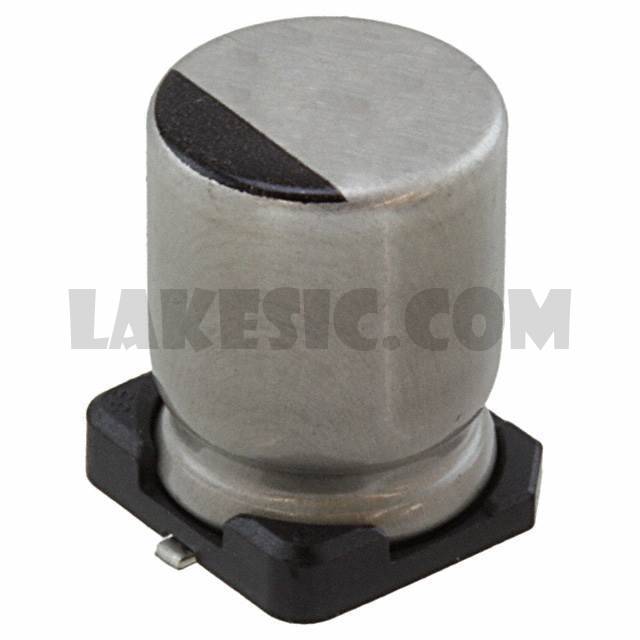

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWZ Series
Standard Package	500
Manufacturer	Nichicon
Series	UWZ
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	High Temperature Reflow
Ripple Current @ Low Frequency	140mA @ 120Hz
Ripple Current @ High Frequency	210mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWZ1V221MCL1GS	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1H470MCL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1A151MCL1GS	Nichicon, 150µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1E100MCL1GB	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J152MCL1GS	Nichicon, 1500µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1A151MCL1GS	Nichicon, 150µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1V101MCL1GS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1A330MCL1GB	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1V100MCL1GB	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J330MCL1GB	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1C101MCL1GB	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1H010MCL1GB	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View

UWZ1H101MCL1GS

Part NumberUWZ1H101MCL1GS
