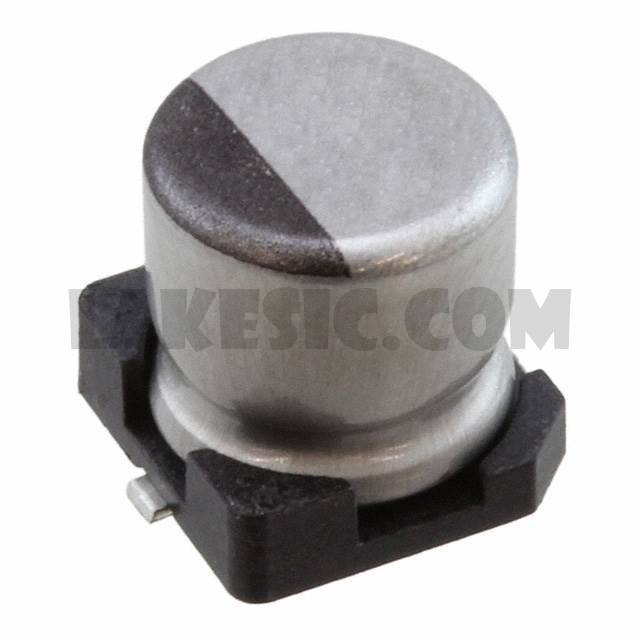

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UWZ Series
Standard Package	1000
Manufacturer	Nichicon
Series	UWZ
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	High Temperature Reflow
Ripple Current @ Low Frequency	25mA @ 120Hz
Ripple Current @ High Frequency	37.5mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UWZ1C221MCL1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1V470MCL1GS	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1V101MCL1GS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1A470MCL1GB	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1H4R7MCL1GB	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J331MCL1GS	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1E4R7MCL1GB	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1E220MCL1GB	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J102MCL1GS	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J220MCL1GB	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ1V221MCL1GS	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View
UWZ0J470MCL1GB	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C, UWZ	View

UWZ1V100MCL1GB

Part NumberUWZ1V100MCL1GB
