Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	V30K45
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	Automotive, AEC-Q101, eSMP®, TMBS®
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	630mV @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	2mA @ 45V
Capacitance @ Vr, F	4000pF @ 4V, 1MHz
Mounting Type	Surface Mount

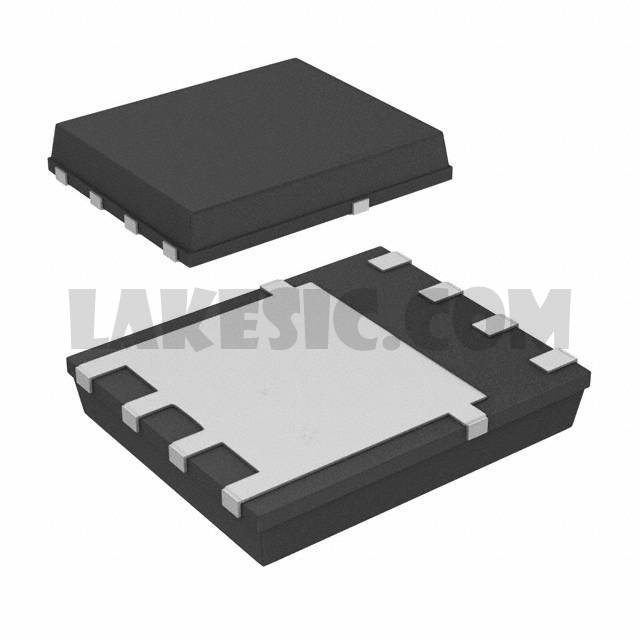

Package / Case	8-PowerTDFN
Supplier Device Package	FlatPAK (5x6)
Operating Temperature - Junction	-40°C ~ 150°C
