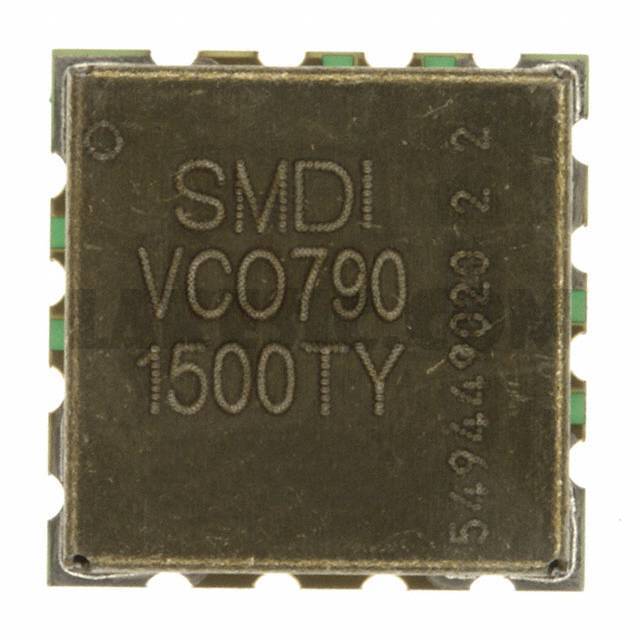

VCO790-1500TY

Part NumberVCO790-1500TY

ManufacturerRFMD

To learn about the specification of VCO790-1500TY, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VCO790-1500TY with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VCO790-1500TY.
We are offering VCO790-1500TY for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Crystals, Oscillators, Resonators / VCOs (Voltage Controlled Oscillators)
Standard Package	10
Manufacturer	RFMD
Series	-
Packaging	Tube
Part Status	Obsolete
Frequency Range	1000 ~ 2000MHz
Frequency - Center	1500MHz
Voltage - Supply	5V
Tuning Voltage (VDC)	0.5V ~ 20V
2nd Harmonic, Typ (dBc)	-9
Icc Max	30mA
Pushing (MHz/V)	5
Power (dBm)	6.5 ±3.5
Phase Noise Typ (dBc/Hz)	-97
Operating Temperature	-40°C ~ 85°C
Package / Case	16-QFN, Variant
Size / Dimension	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height	0.177" (4.49mm)
