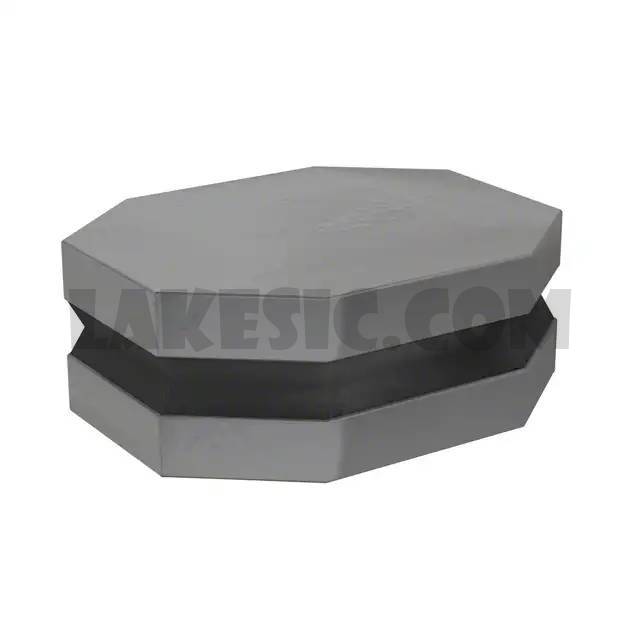

VLS252010T-100M


VLS252010T-100M

Part NumberVLS252010T-100M

Manufacturer

Description

Datasheet

Package / Case1008 (2520 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

VLS252010T-100M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package2000
ManufacturerTDK Corporation
SeriesVLS
PackagingTape & Reel (TR)
Part StatusNot For New Designs
TypeWirewound
Material - CoreFerrite
Inductance10µH
Tolerance±20%
Current Rating (Amps)520mA
Current - Saturation590mA
ShieldingShielded
DC Resistance (DCR)854mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test1MHz
Mounting TypeSurface Mount
Package / Case1008 (2520 Metric)
Supplier Device Package1008 (2520 Metric)
Size / Dimension0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)0.039" (1.00mm)
