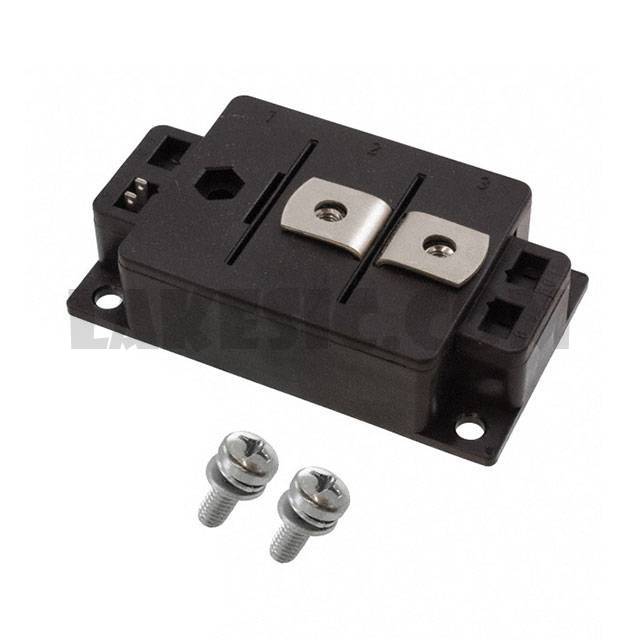

VMO1200-01F

VMO1200-01F

Part NumberVMO1200-01F

ManufacturerIXYS

DescriptionMOSFET N-CH 100V 1245A Y3-LI

DatasheetVMO1200-01F

Package / CaseY3-Li

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 1220A (Tc) Chassis Mount Y3-Li

To learn about the specification of VMO1200-01F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VMO1200-01F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VMO1200-01F.
We are offering VMO1200-01F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VMO1200-01F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	VMO1200-01F
Standard Package	2
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Tray
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	1220A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.35mOhm @ 932A, 10V
Vgs(th) (Max) @ Id	4V @ 64mA
Gate Charge (Qg) (Max) @ Vgs	2520nC @ 10V
Vgs (Max)	±20V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	Y3-Li
Package / Case	Y3-Li
Base Part Number	VMO
