VN2110K1-G

VN2110K1-G

Part NumberVN2110K1-G

ManufacturerMicrochip Technology

DescriptionMOSFET N-CH 100V 0.2A SOT23-3

DatasheetVN2110

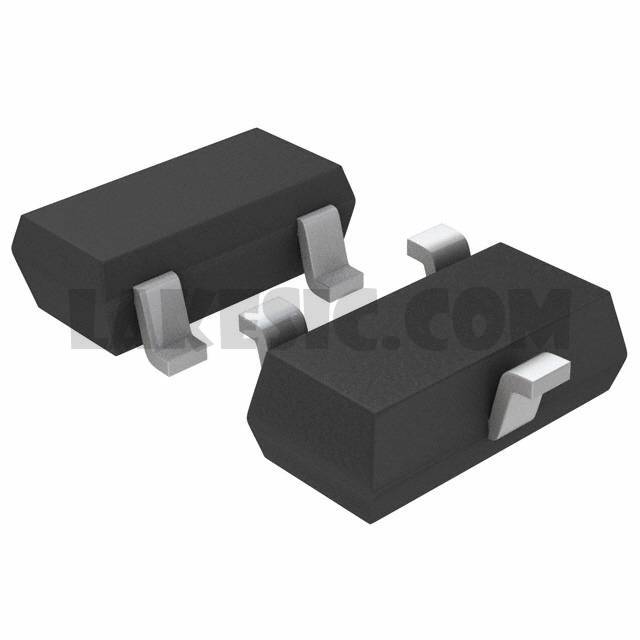

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 200mA (Tj) 360mW (Tc) Surface Mount SOT-23-3

To learn about the specification of VN2110K1-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VN2110K1-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VN2110K1-G.
We are offering VN2110K1-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VN2110K1-G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	VN2110
Standard Package	3000
Manufacturer	Microchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	200mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	4Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.4V @ 1mA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 25V
FET Feature	-
Power Dissipation (Max)	360mW (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
