Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	45L(R),150K(R),150KS(R)
Standard Package	25
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	150A
Voltage - Forward (Vf) (Max) @ If	1.33V @ 471A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	35mA @ 400V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-205AA, DO-8, Stud
Supplier Device Package	DO-205AA (DO-8)
Operating Temperature - Junction	-40°C ~ 200°C

STBR6012WY	STMicroelectronics, Diode Standard 1200V 60A Through Hole DO-247, Automotive, AEC-Q101, ECOPACK®2	View
MURS3GB-TP	Micro Commercial Co, Diode Standard 400V 3A Surface Mount DO-214AA (SMB),	View
MURS360BT3G	ON Semiconductor, Diode Standard 600V 3A Surface Mount SMB,	View
UFM14PL-TP	Micro Commercial Co, Diode Standard 400V 1A Surface Mount SOD-123FL,	View
CD214B-R3600	Bourns Inc., Diode Standard 600V 3A Surface Mount DO-214AA (SMB),	View
S4J R7G	Taiwan Semiconductor Corporation, Diode Standard 600V 4A Surface Mount DO-214AB (SMC),	View
VS-T70HFL60S02	Vishay Semiconductor Diodes Division, Diode Standard 600V 70A Chassis Mount D-55,	View
1N4531,113	Nexperia USA Inc., Diode Standard 75V 200mA Through Hole DO-34, Automotive, AEC-Q101	View
1N4003E-E3/73	Vishay Semiconductor Diodes Division, Diode Standard 200V 1A Through Hole DO-204AL (DO-41),	View
1SS355VMTE-17	Rohm Semiconductor, Diode Standard 80V 100mA Surface Mount UMD2,	View
VS-4EGH06-M3/5BT	Vishay Semiconductor Diodes Division, Diode Standard 600V 4A Surface Mount SMB, FRED Pt®	View
JANTX1N6640	Microsemi Corporation, Diode Standard 50V 300mA Through Hole, Military, MIL-PRF-19500/609	View

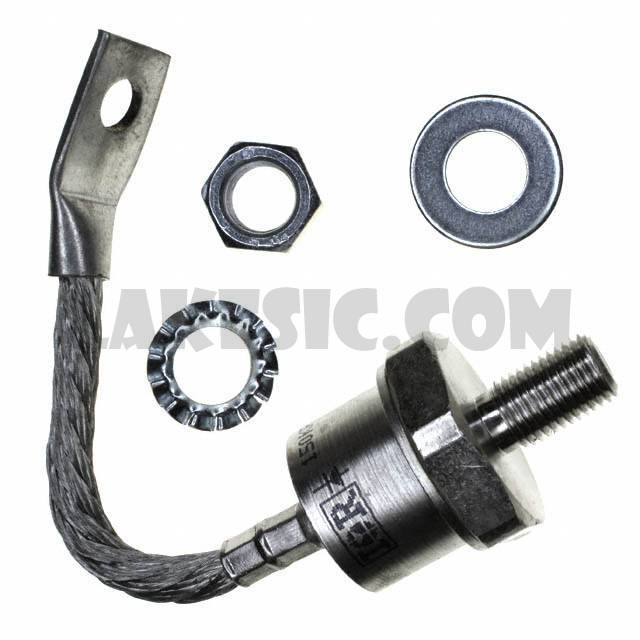

VS-150KR40A
