Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	VS-15ETH03S-M3, VS-15ETH03-1-M3
Standard Package	50
Manufacturer	Vishay Semiconductor Diodes Division
Series	FRED Pt®
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	300V
Current - Average Rectified (Io)	15A
Voltage - Forward (Vf) (Max) @ If	1.25V @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	40ns
Current - Reverse Leakage @ Vr	40µA @ 300V
Capacitance @ Vr, F	-
Mounting Type	Through Hole

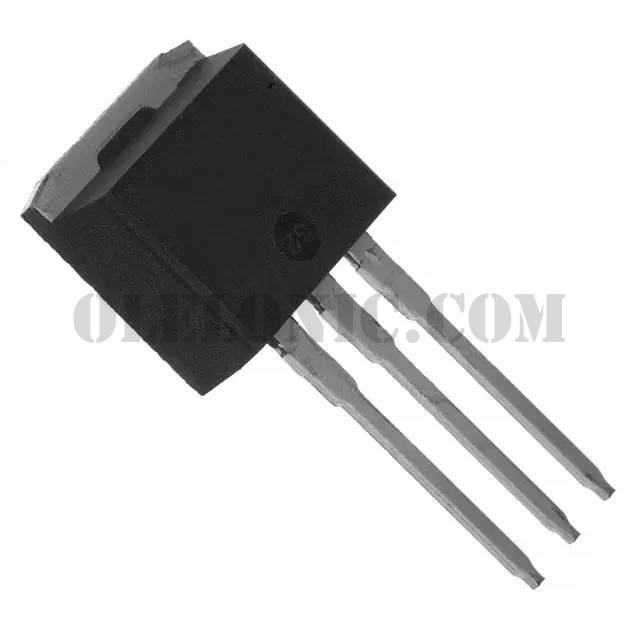

Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package	TO-262AA
Operating Temperature - Junction	-65°C ~ 175°C
