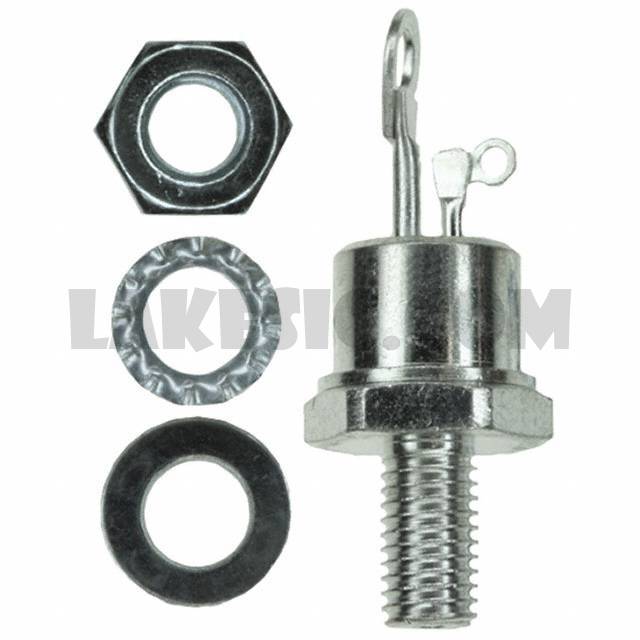

VS-2N692

VS-2N692

Part NumberVS-2N692

ManufacturerVishay Semiconductor Diodes Division

DescriptionSCR PHASE CONT 800V 25A TO-48

DatasheetVS-2N681, VS-2N5205 Series

Package / CaseTO-208AA, TO-48-3, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR 800V 25A Standard Recovery Chassis, Stud Mount TO-208AA (TO-48)

To learn about the specification of VS-2N692, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-2N692 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-2N692.
We are offering VS-2N692 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-2N692 - Product Attributes

Categories	Discrete Semiconductor Products / Thyristors - SCRs
Datasheet	VS-2N681, VS-2N5205 Series
Standard Package	100
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Voltage - Off State	800V
Voltage - Gate Trigger (Vgt) (Max)	2V
Current - Gate Trigger (Igt) (Max)	40mA
Voltage - On State (Vtm) (Max)	2V
Current - On State (It (AV)) (Max)	16A
Current - On State (It (RMS)) (Max)	25A
Current - Hold (Ih) (Max)	20mA
Current - Off State (Max)	2mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	145A, 150A
SCR Type	Standard Recovery
Operating Temperature	-65°C ~ 125°C
Mounting Type	Chassis, Stud Mount
Package / Case	TO-208AA, TO-48-3, Stud
Supplier Device Package	TO-208AA (TO-48)
Base Part Number	2N6*
