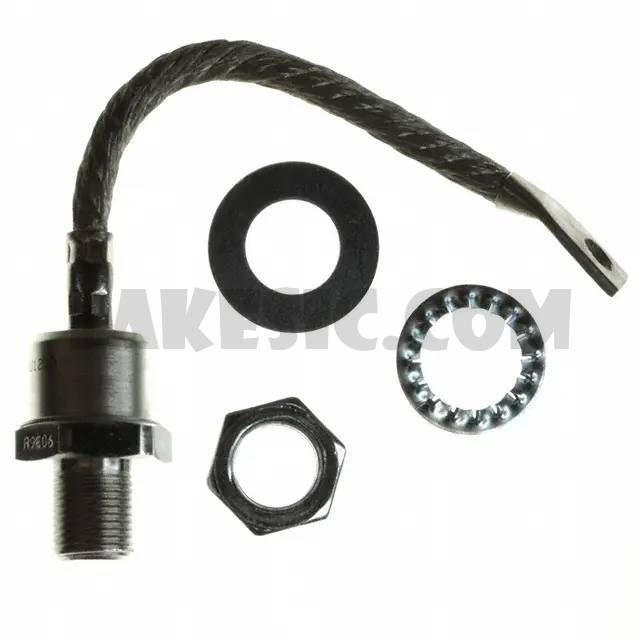

VS-300U20A

VS-300U20A

Part NumberVS-300U20A

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 200V 300A DO205AB

Datasheet300U(R) Series

Package / CaseDO-205AB, DO-9, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 300A Stud Mount DO-205AB, DO-9

To learn about the specification of VS-300U20A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-300U20A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-300U20A.
We are offering VS-300U20A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-300U20A - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	300U(R) Series
Standard Package	12
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	300A
Voltage - Forward (Vf) (Max) @ If	1.4V @ 942A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	40mA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Stud Mount
Package / Case	DO-205AB, DO-9, Stud
Supplier Device Package	DO-205AB, DO-9
Operating Temperature - Junction	-65°C ~ 200°C
