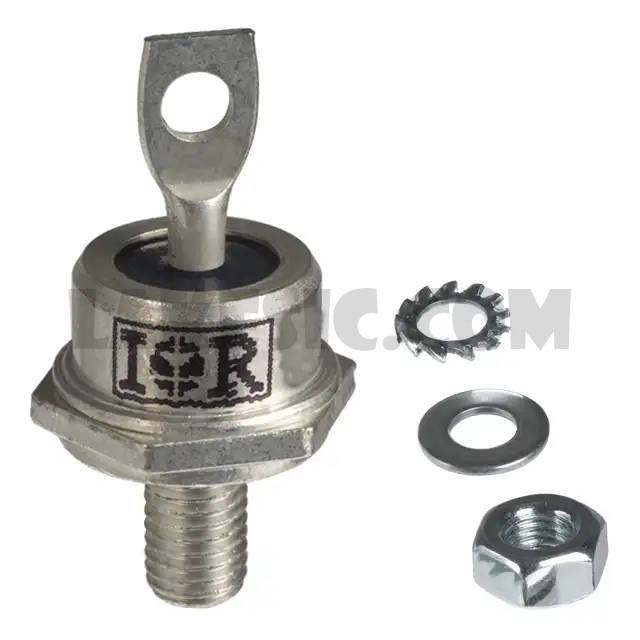

VS-40HF100

VS-40HF100

Part NumberVS-40HF100

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 1KV 40A DO203AB

DatasheetVS-40HF(R) Series

Package / CaseDO-203AB, DO-5, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1000V 40A Chassis, Stud Mount DO-203AB

To learn about the specification of VS-40HF100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-40HF100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-40HF100.
We are offering VS-40HF100 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-40HF100 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	VS-40HF(R) Series
Standard Package	100
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	40A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 125A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	9mA @ 1000V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AB, DO-5, Stud
Supplier Device Package	DO-203AB
Operating Temperature - Junction	-65°C ~ 190°C
