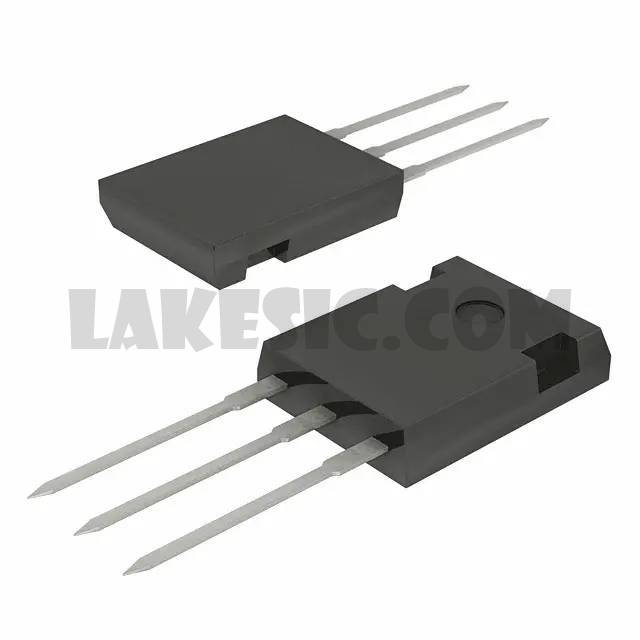

VS-50TPS12L-M3
VS-50TPS12L-M3
Part Number VS-50TPS12L-M3
Description SCR STANDARD 1200V 50A TO-247L
Package / Case TO-247-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description SCR 1.2kV 79A Standard Recovery Through Hole TO-247L
To learn about the specification of VS-50TPS12L-M3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-50TPS12L-M3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-50TPS12L-M3.
We are offering VS-50TPS12L-M3 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
VS-50TPS12L-M3 - Product Attributes
Categories
Discrete Semiconductor Products / Thyristors - SCRs
Datasheet VS-50TPS12L-M3
Standard Package 25
Manufacturer Vishay Semiconductor Diodes Division
Series -
Packaging Tube
Part Status Active
Voltage - Off State 1.2kV
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Gate Trigger (Igt) (Max) 100mA
Voltage - On State (Vtm) (Max) 1.32V
Current - On State (It (AV)) (Max) 50A
Current - On State (It (RMS)) (Max) 79A
Current - Hold (Ih) (Max) 300mA
Current - Off State (Max) 50µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 530A @ 100Hz
SCR Type Standard Recovery
Operating Temperature -40°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247L
