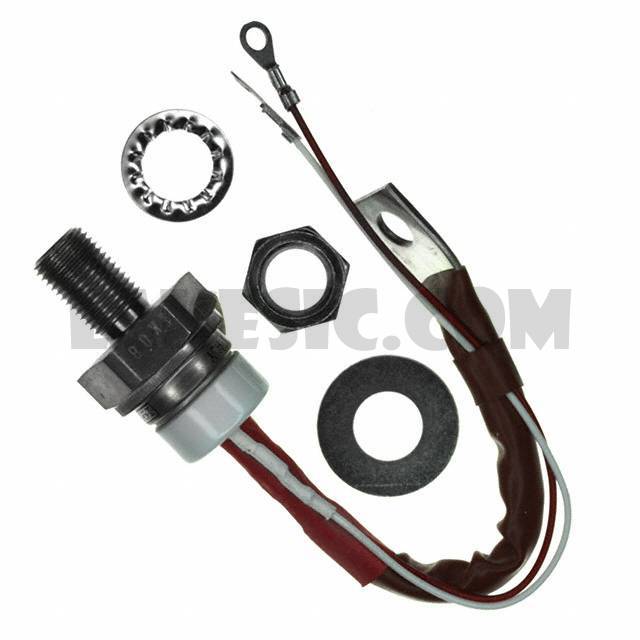

VS-80RIA120PBF

VS-80RIA120PBF

Part NumberVS-80RIA120PBF

ManufacturerVishay Semiconductor Diodes Division

DescriptionMOD SCR PH CTRL 1200V 80A TO-94

Datasheet80-82RIA...PbF Series

Package / CaseTO-209AC, TO-94-4, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR 1.2kV 125A Standard Recovery Chassis, Stud Mount TO-209AC (TO-94)

To learn about the specification of VS-80RIA120PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-80RIA120PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-80RIA120PBF.
We are offering VS-80RIA120PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-80RIA120PBF - Product Attributes

Categories	Discrete Semiconductor Products / Thyristors - SCRs
Datasheet	80-82RIA...PbF Series
Standard Package	25
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Voltage - Off State	1.2kV
Voltage - Gate Trigger (Vgt) (Max)	2.5V
Current - Gate Trigger (Igt) (Max)	120mA
Voltage - On State (Vtm) (Max)	1.6V
Current - On State (It (AV)) (Max)	80A
Current - On State (It (RMS)) (Max)	125A
Current - Hold (Ih) (Max)	200mA
Current - Off State (Max)	15mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1900A, 1990A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis, Stud Mount
Package / Case	TO-209AC, TO-94-4, Stud
Supplier Device Package	TO-209AC (TO-94)
