VS-8CSH02HM3/86A

Part NumberVS-8CSH02HM3/86A

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE 200V 4A TO277A

DatasheetVS-8CSH02HM3

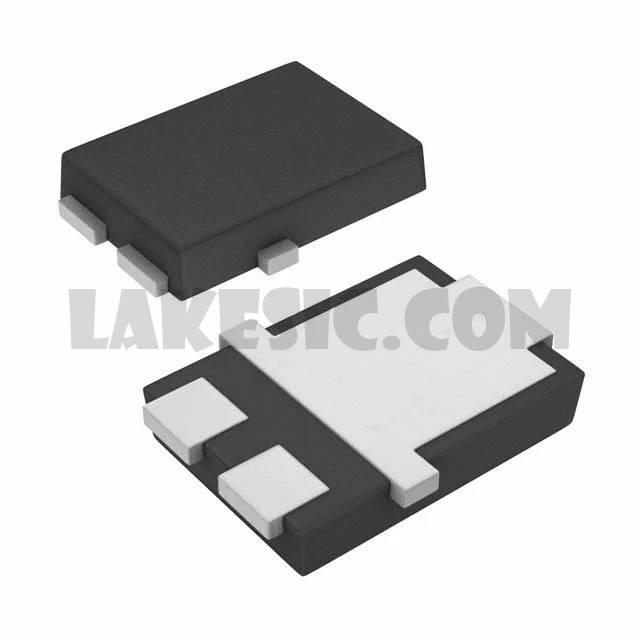

Package / CaseTO-277, 3-PowerDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 200V 4A Surface Mount TO-277, 3-PowerDFN

To learn about the specification of VS-8CSH02HM3/86A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-8CSH02HM3/86A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-8CSH02HM3/86A.
We are offering VS-8CSH02HM3/86A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-8CSH02HM3/86A - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	VS-8CSH02HM3
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	Automotive, AEC-Q101, FRED Pt®
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	4A
Voltage - Forward (Vf) (Max) @ If	950mV @ 4A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	18ns
Current - Reverse Leakage @ Vr	2µA @ 200V
Operating Temperature - Junction	-65°C ~ 175°C
Mounting Type	Surface Mount
Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	TO-277A (SMPC)
