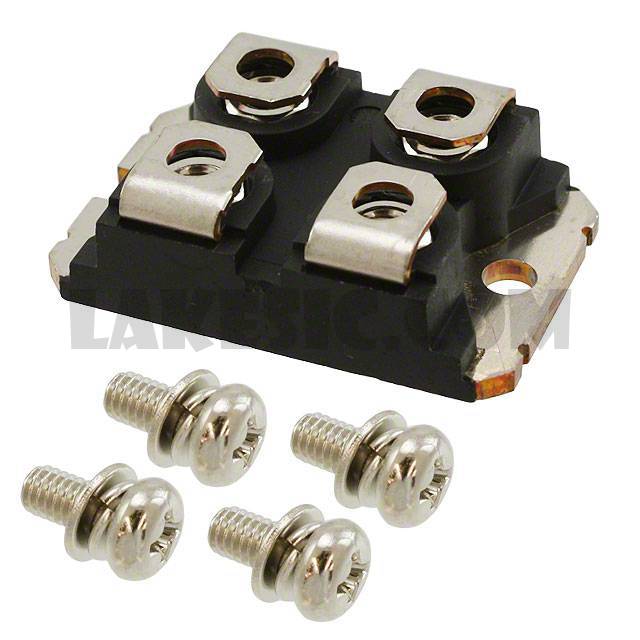

VS-FC420SA10


VS-FC420SA10

Part NumberVS-FC420SA10

Manufacturer

Description

Datasheet

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

VS-FC420SA10 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package10
ManufacturerVishay Semiconductor Diodes Division
SeriesTrenchFET®
PackagingTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25°C435A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.15mOhm @ 200A, 10V
Vgs(th) (Max) @ Id3.8V @ 750µA
Gate Charge (Qg) (Max) @ Vgs375nC @ 10V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds17300pF @ 25V
FET Feature-
Power Dissipation (Max)652W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageSOT-227
Package / CaseSOT-227-4, miniBLOC
